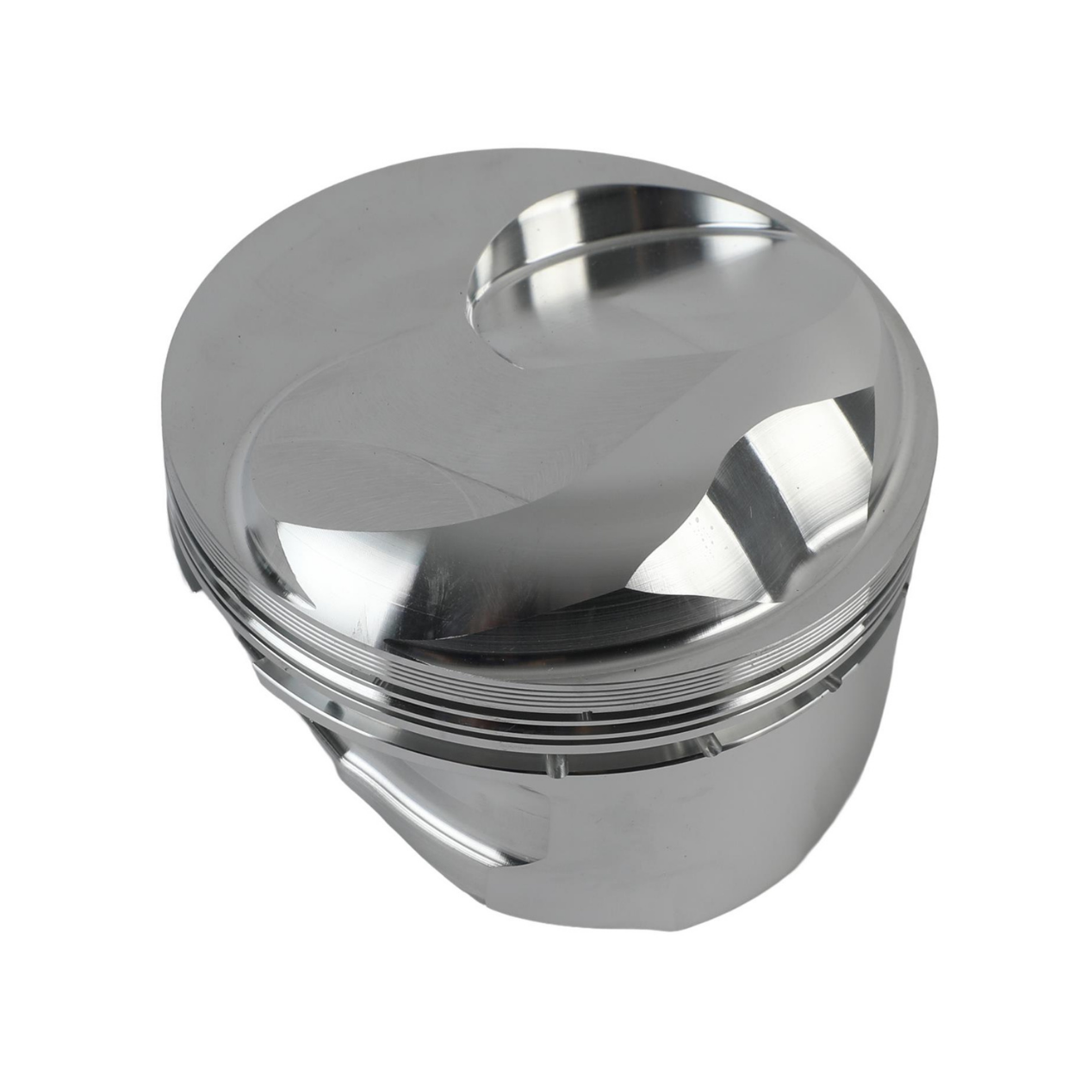

BBC5312-STD BBC CP Pistons

$1,068.90

Big Block Chevy 24.5cc dome 4.500 Bore 4.000 stroke 6.385 rod, 10.7 to 1 with 118cc head

  • Bore: 4.500"
  • Stroke: 4.000"
  • Rod Length: 6.385"
  • Compression Height: 1.400"
  • Dome Height: +0.250"
  • Dome/Dish Volume: +24.5cc
  • Reference Chamber: 118.0cc
  • Catalog Compression Ratio: 10.60:1
  • Piston Weight: 667g
  • Resulting Displacement: 509 cid

Big Block Chevy 24.5cc dome 4.500 Bore 4.000 stroke 6.385 rod, 10.7 to 1 with 118cc head

  • Bore: 4.500"
  • Stroke: 4.000"
  • Rod Length: 6.385"
  • Compression Height: 1.400"
  • Dome Height: +0.250"
  • Dome/Dish Volume: +24.5cc
  • Reference Chamber: 118.0cc
  • Catalog Compression Ratio: 10.60:1
  • Piston Weight: 667g
  • Resulting Displacement: 509 cid
