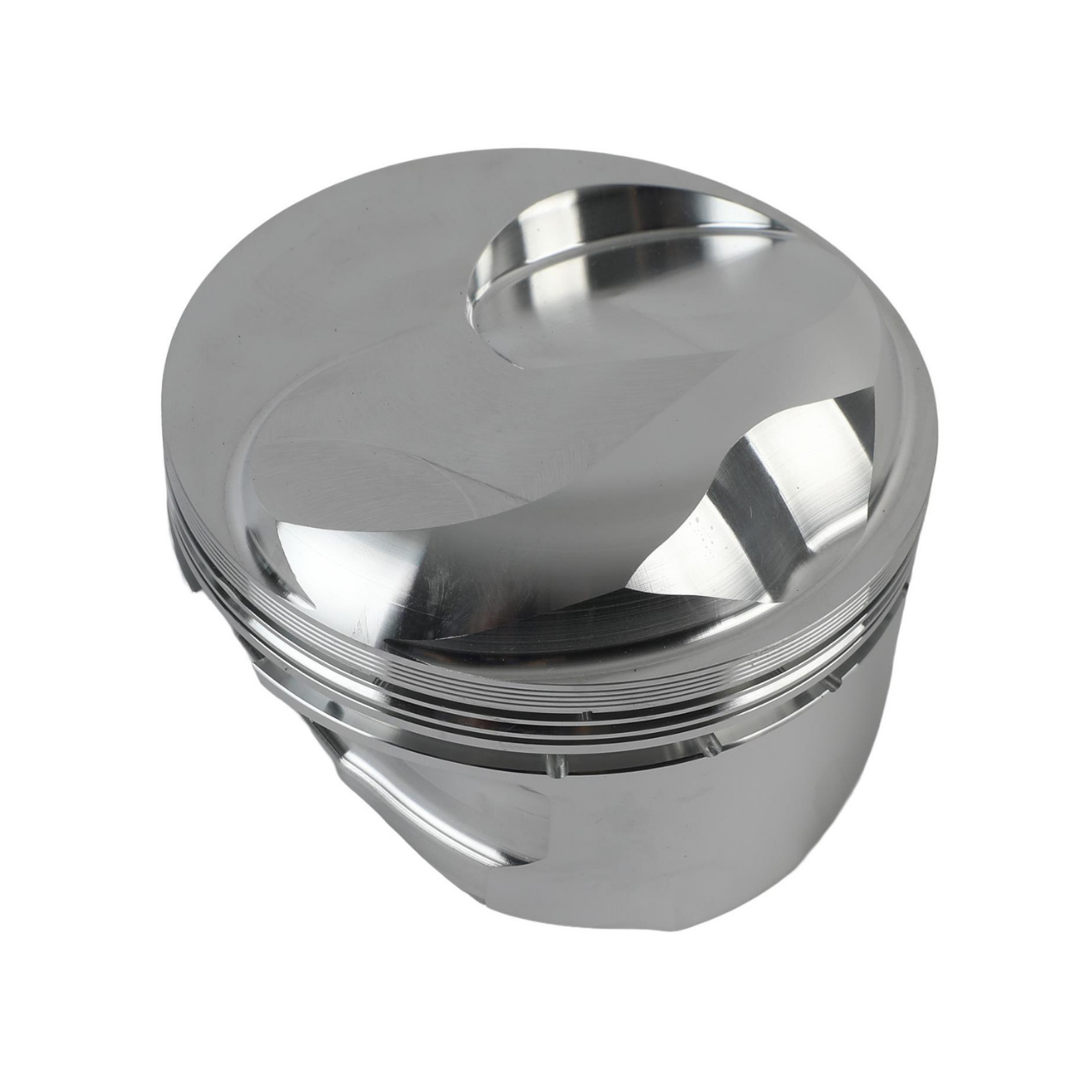

BBC5320-STD BBC CP Pistons

$1,068.90

Big Block Chevy Tall Deck 24.9cc dome 4.500 Bore 4.750 stroke 6.700 rod, 12.8 to 1 with 118cc head

  • Bore: 4.500"
  • Stroke: 4.750"
  • Rod Length: 6.700"
  • Compression Height: 1.120"
  • Dome Height: +0.250"
  • Dome/Dish Volume: +24.9cc
  • Reference Chamber: 118.0cc
  • Catalog Compression Ratio: 12.80:1
  • Piston Weight: 600g
  • Resulting Displacement: 604 cid

Big Block Chevy Tall Deck 24.9cc dome 4.500 Bore 4.750 stroke 6.700 rod, 12.8 to 1 with 118cc head

  • Bore: 4.500"
  • Stroke: 4.750"
  • Rod Length: 6.700"
  • Compression Height: 1.120"
  • Dome Height: +0.250"
  • Dome/Dish Volume: +24.9cc
  • Reference Chamber: 118.0cc
  • Catalog Compression Ratio: 12.80:1
  • Piston Weight: 600g
  • Resulting Displacement: 604 cid
