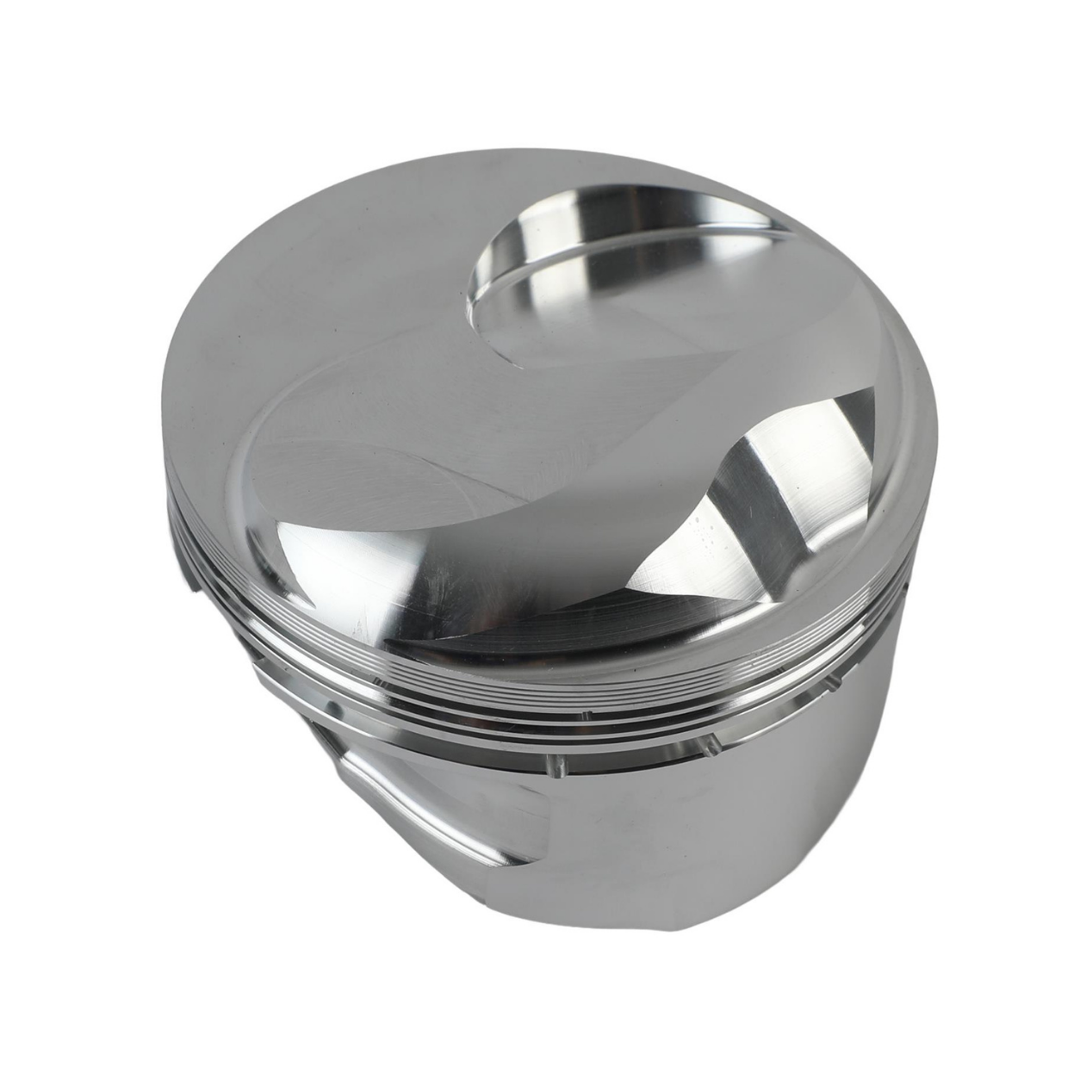

BBCR5306-STD BBC CP Pistons

$1,407.00

Big Block Chevy 16.1cc Dome 4.500 Bore 4.250 stroke 6.385 rod, 10.5:1 with 118cc head

  • Bore: 4.500"
  • Stroke: 4.250"
  • Rod Length: 6.385"
  • Compression Height: 1.270"
  • Dome Height: +67.690"
  • Dome/Dish Volume: +16.1cc
  • Reference Chamber: 118.0cc
  • Catalog Compression Ratio: 10.50:1
  • Piston Weight: 653g
  • Resulting Displacement: 541 cid
