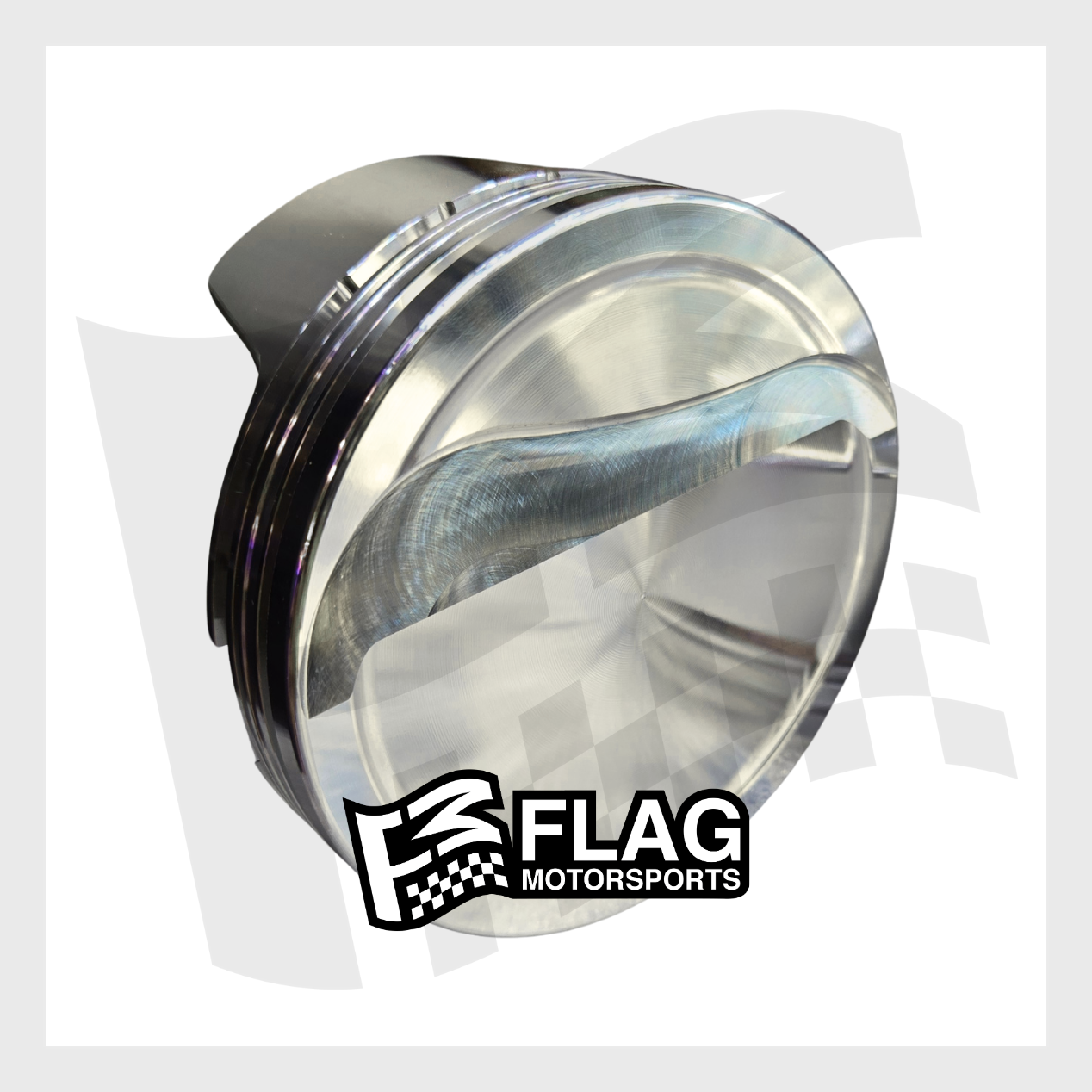

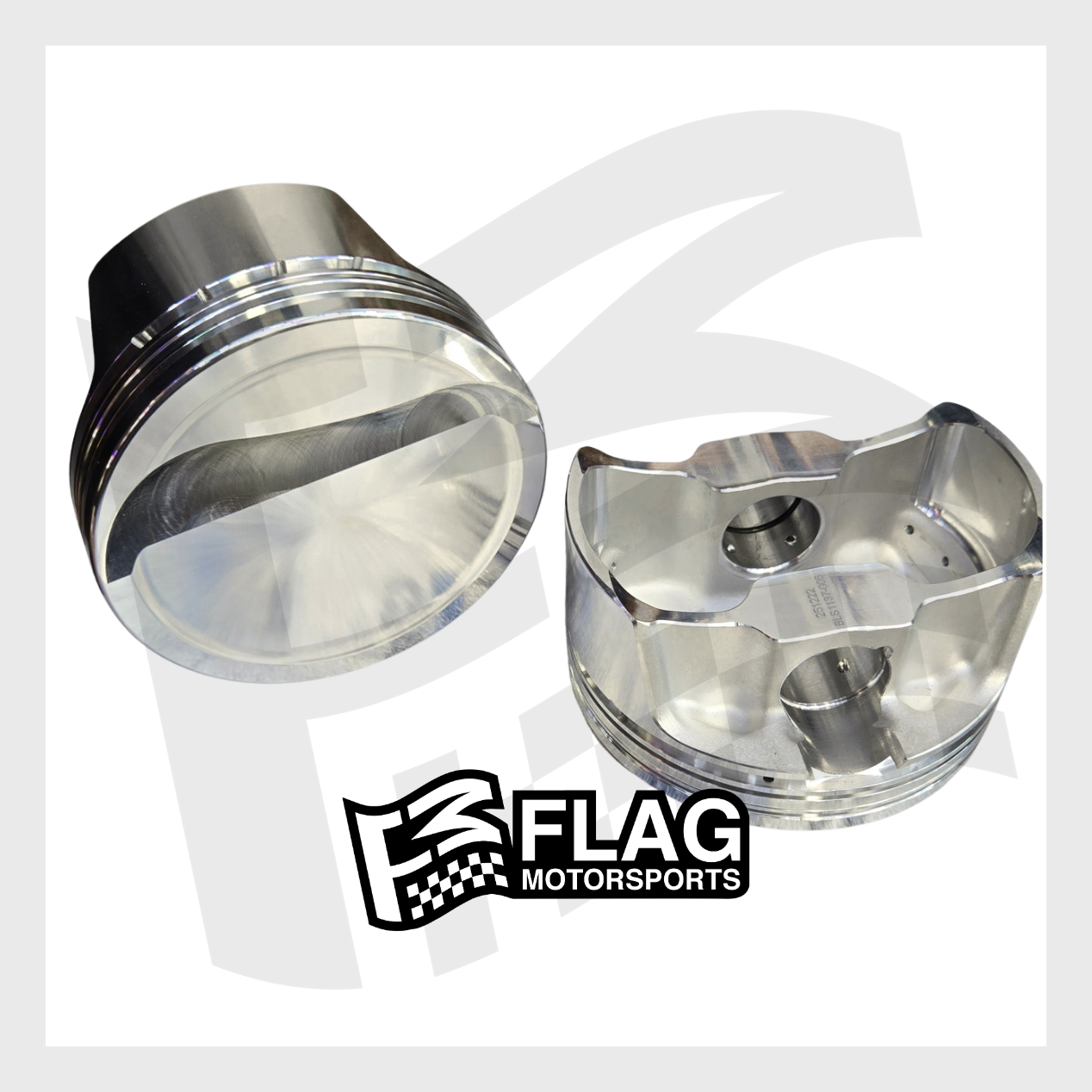

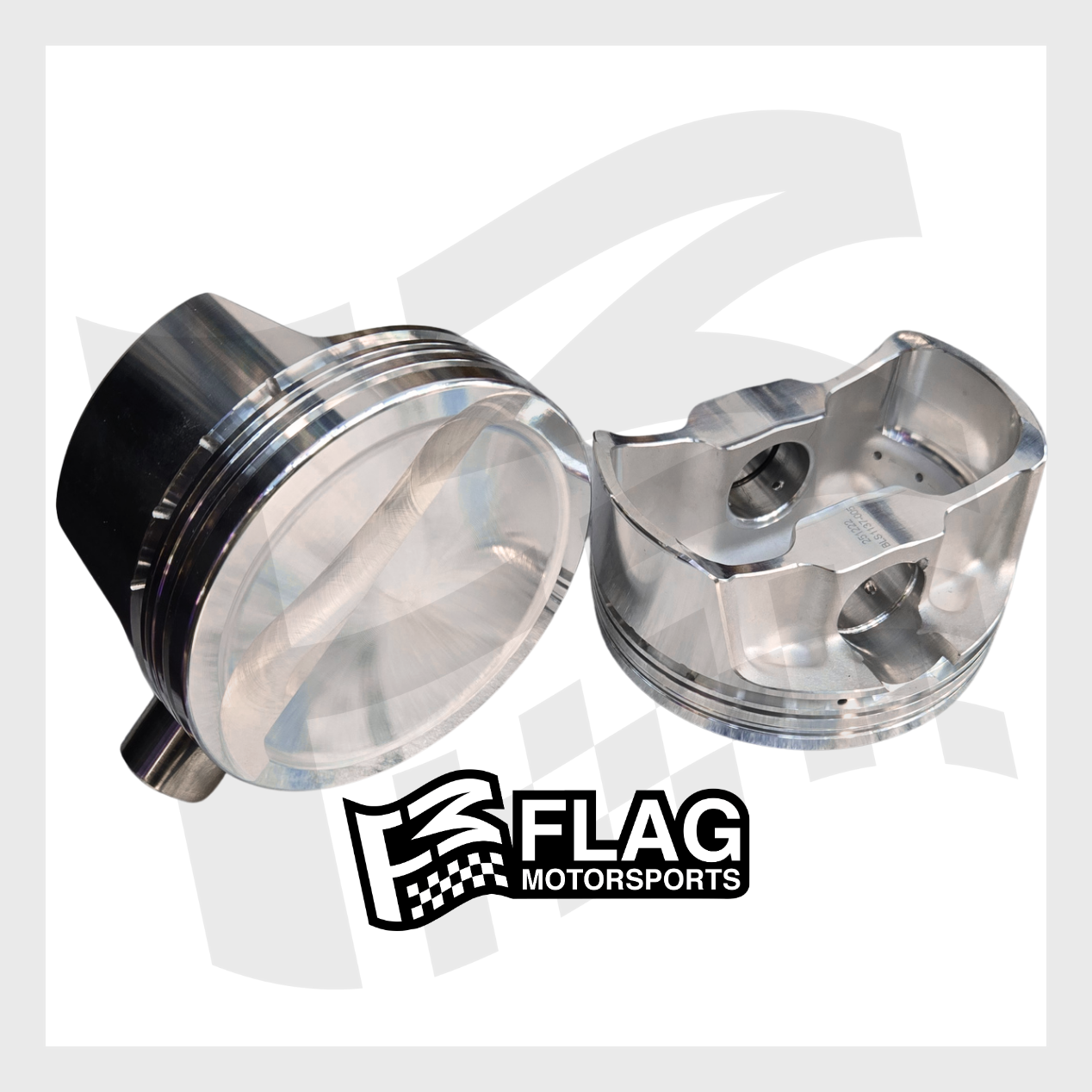

Big Block 24° N/A BB3 Xtra / Head Hunter 4.500 bore, 4.250 stroke, 6.385 rod, 1.275 CH 46.9cc dome .043mm, .043mm, 3mm rings
- Bore: 4.500"
- Stroke: 4.250"
- Rod Length: 6.385"
- Compression Height: 1.275"
- Dome Height: +0.650"
- Dome/Dish Volume: +46.9cc
- Reference Chamber: 118.0cc
- Catalog Compression Ratio: 13.70:1
- Piston Weight: 663g
- Resulting Displacement: 541 cid
Big Block 24° N/A BB3 Xtra / Head Hunter 4.500 bore, 4.250 stroke, 6.385 rod, 1.275 CH 46.9cc dome .043mm, .043mm, 3mm rings
- Bore: 4.500"
- Stroke: 4.250"
- Rod Length: 6.385"
- Compression Height: 1.275"
- Dome Height: +0.650"
- Dome/Dish Volume: +46.9cc
- Reference Chamber: 118.0cc
- Catalog Compression Ratio: 13.70:1
- Piston Weight: 663g
- Resulting Displacement: 541 cid
