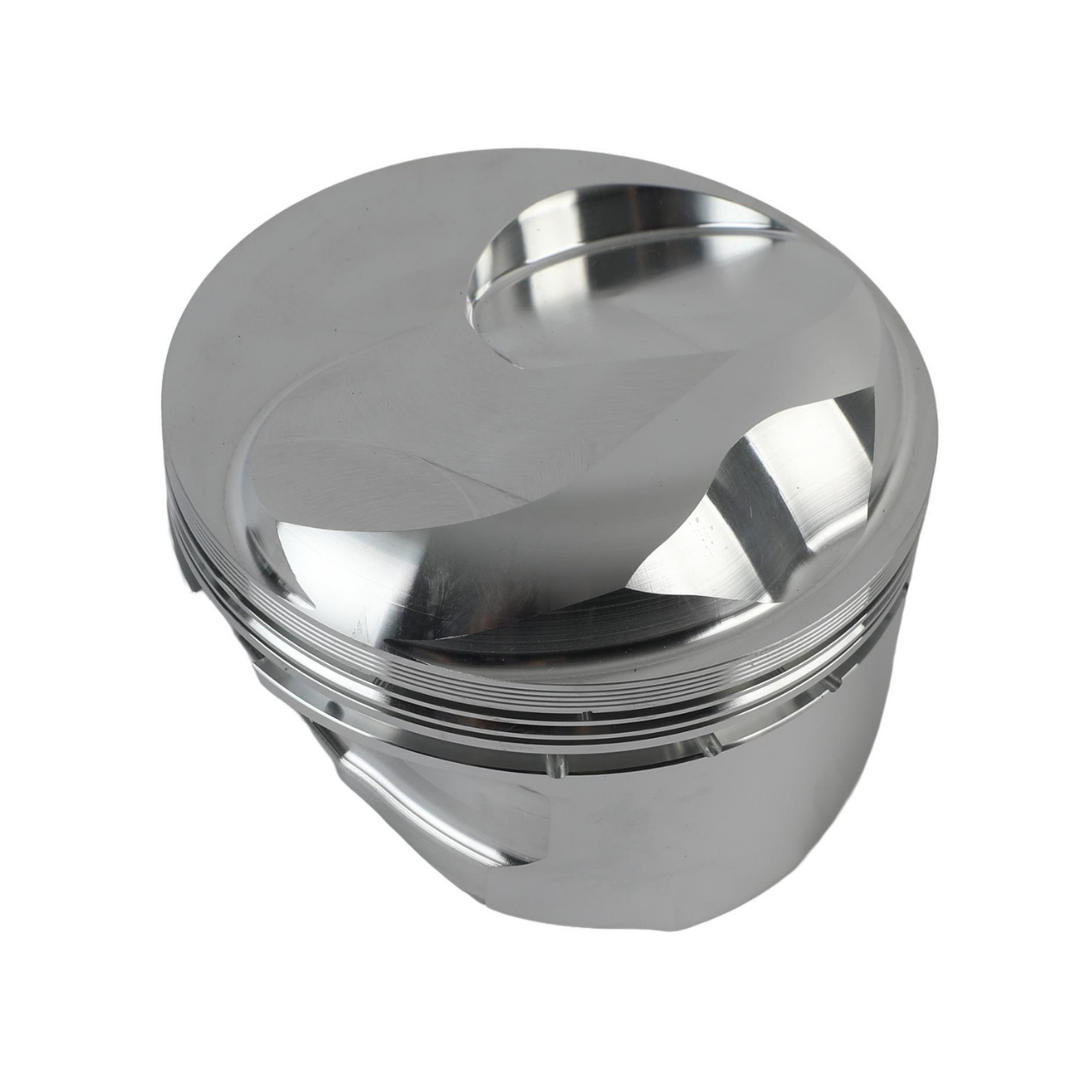

BC1122-STD SBC CP Pistons

$1,016.40

Chevy 400ci All 23° 4.125 Bore 1.270 CH -27.2cc Dish

  • Bore: 4.125"
  • Stroke: 3.750"
  • Rod Length: 5.850"
  • Compression Height: 1.270"
  • Dome Height: -0.180"
  • Dome/Dish Volume: -27.2cc
  • Reference Chamber: 64.0cc
  • Catalog Compression Ratio: 9.10:1
  • Piston Weight: 468g
  • Resulting Displacement: 401 cid
