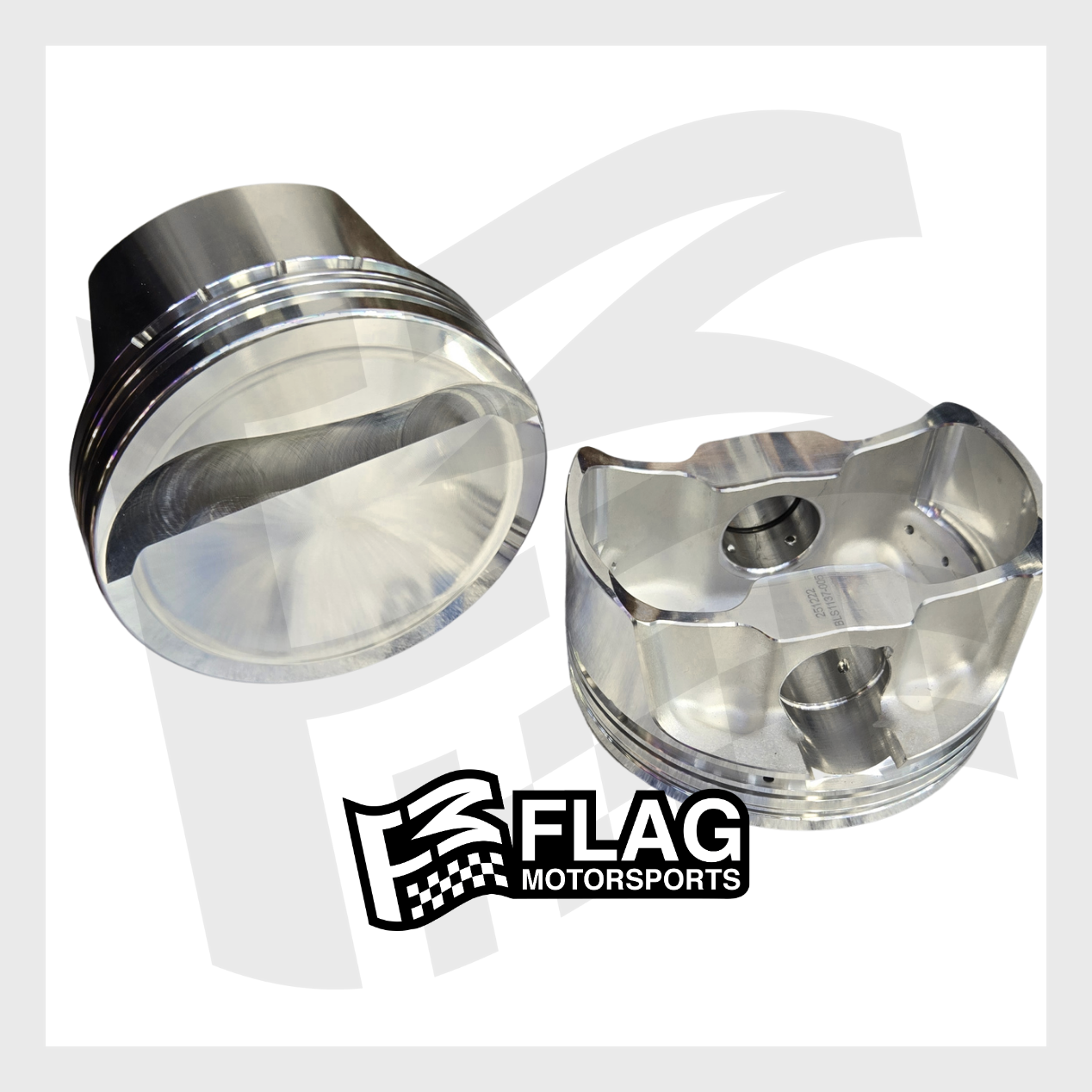

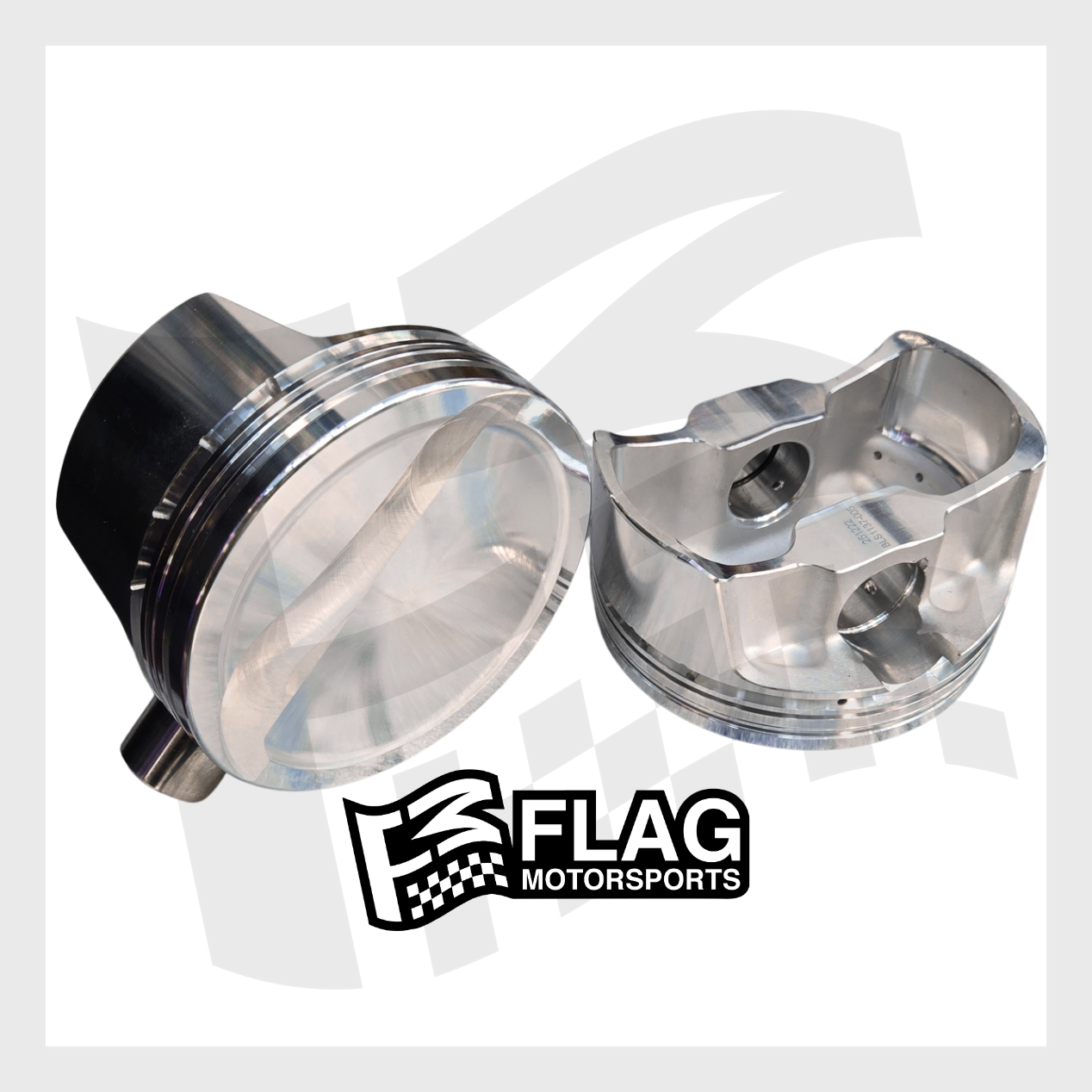

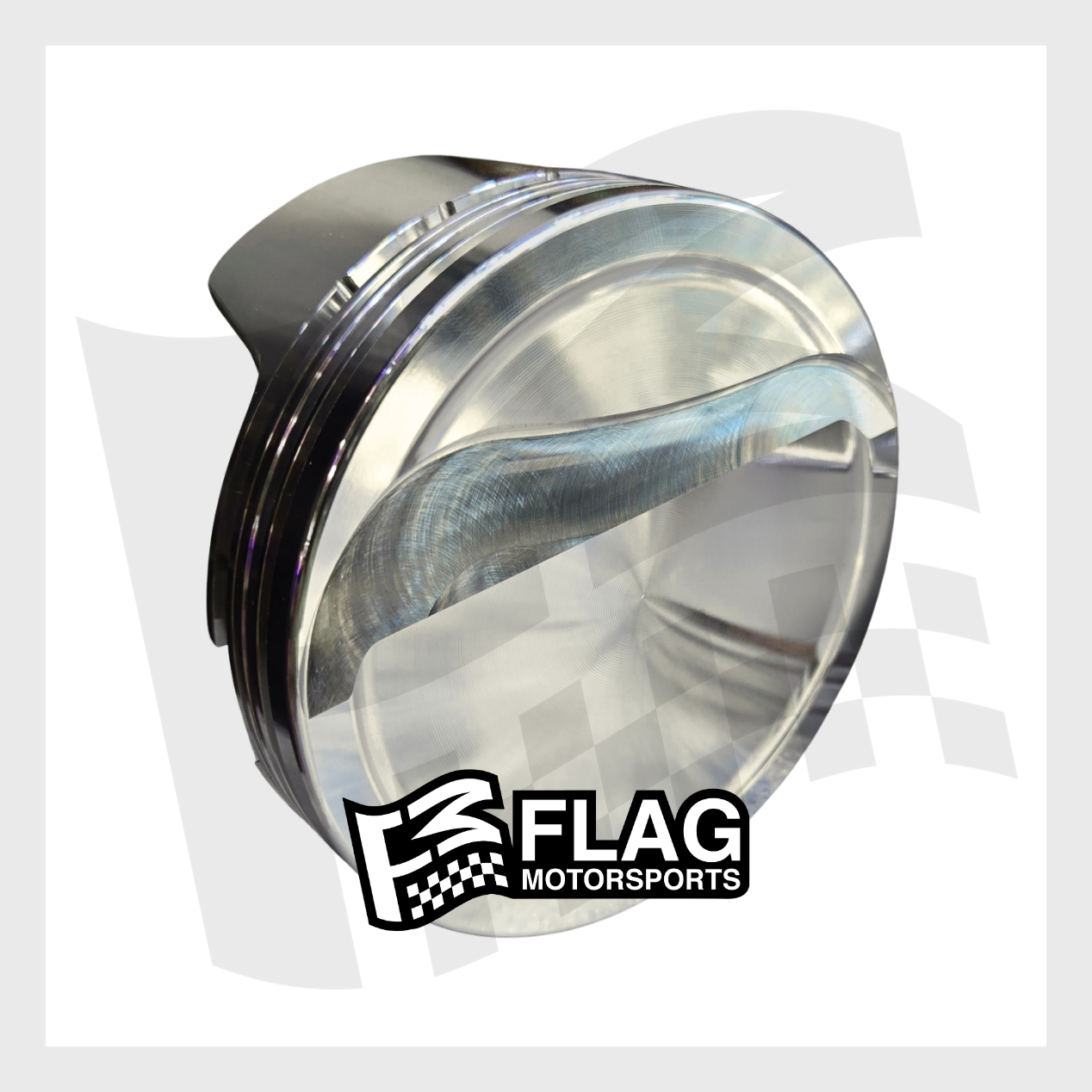

BLS1133-030 LS1/LS2/LS3 CP Pistons

$1,016.40

Chevy 409ci LS L92 4.030 bore 1.115 CH 4.000 stroke 6.125 rod 13:1 CR with 68cc head

  • Bore: 4.030"
  • Stroke: 4.000"
  • Rod Length: 6.125"
  • Compression Height: 1.115"
  • Dome Height: +0.175"
  • Dome/Dish Volume: +10.0cc
  • Reference Chamber: 68.0cc
  • Catalog Compression Ratio: 13.10:1
  • Piston Weight: 462g
  • Resulting Displacement: 408 cid

Chevy 409ci LS L92 4.030 bore 1.115 CH 4.000 stroke 6.125 rod 13:1 CR with 68cc head

  • Bore: 4.030"
  • Stroke: 4.000"
  • Rod Length: 6.125"
  • Compression Height: 1.115"
  • Dome Height: +0.175"
  • Dome/Dish Volume: +10.0cc
  • Reference Chamber: 68.0cc
  • Catalog Compression Ratio: 13.10:1
  • Piston Weight: 462g
  • Resulting Displacement: 408 cid
