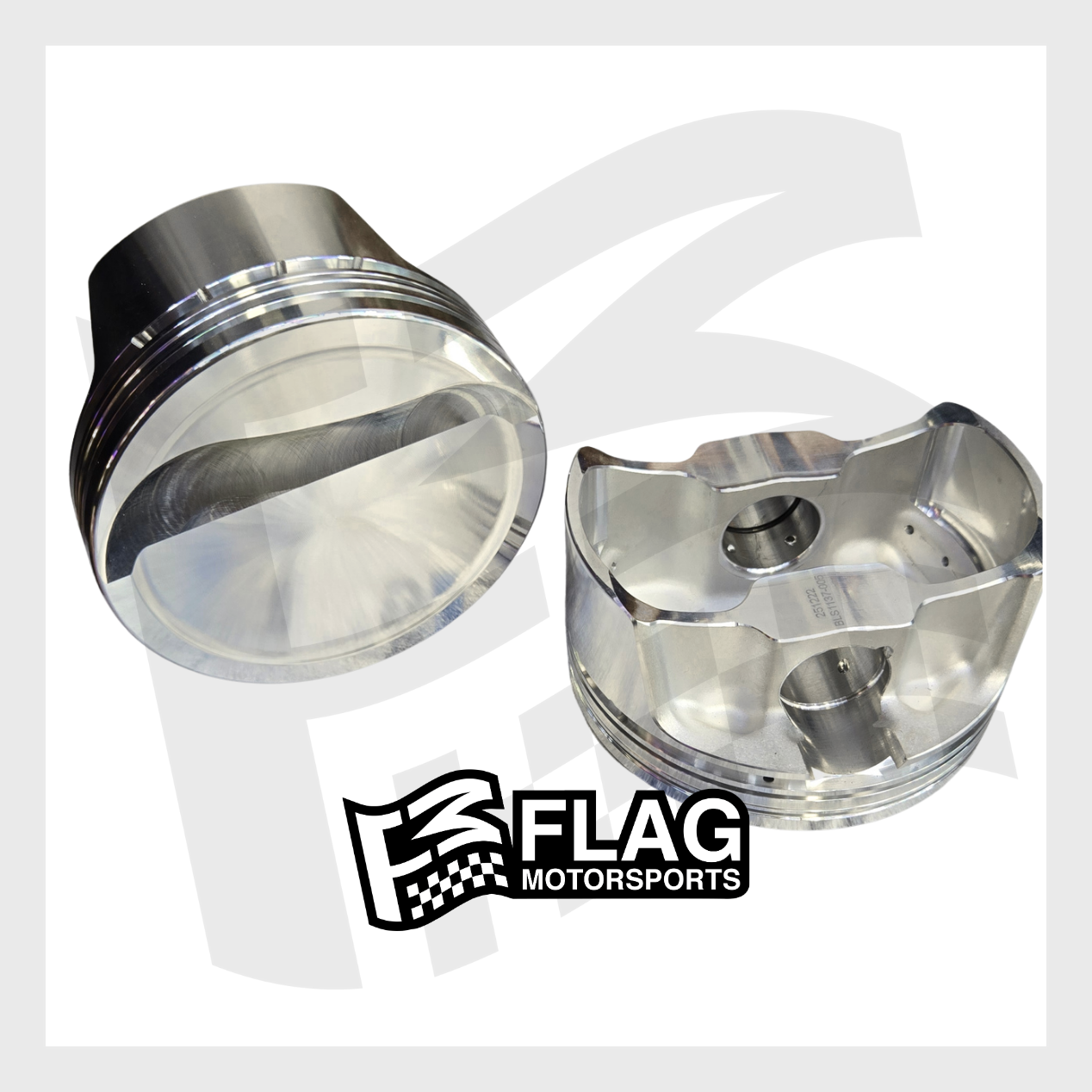

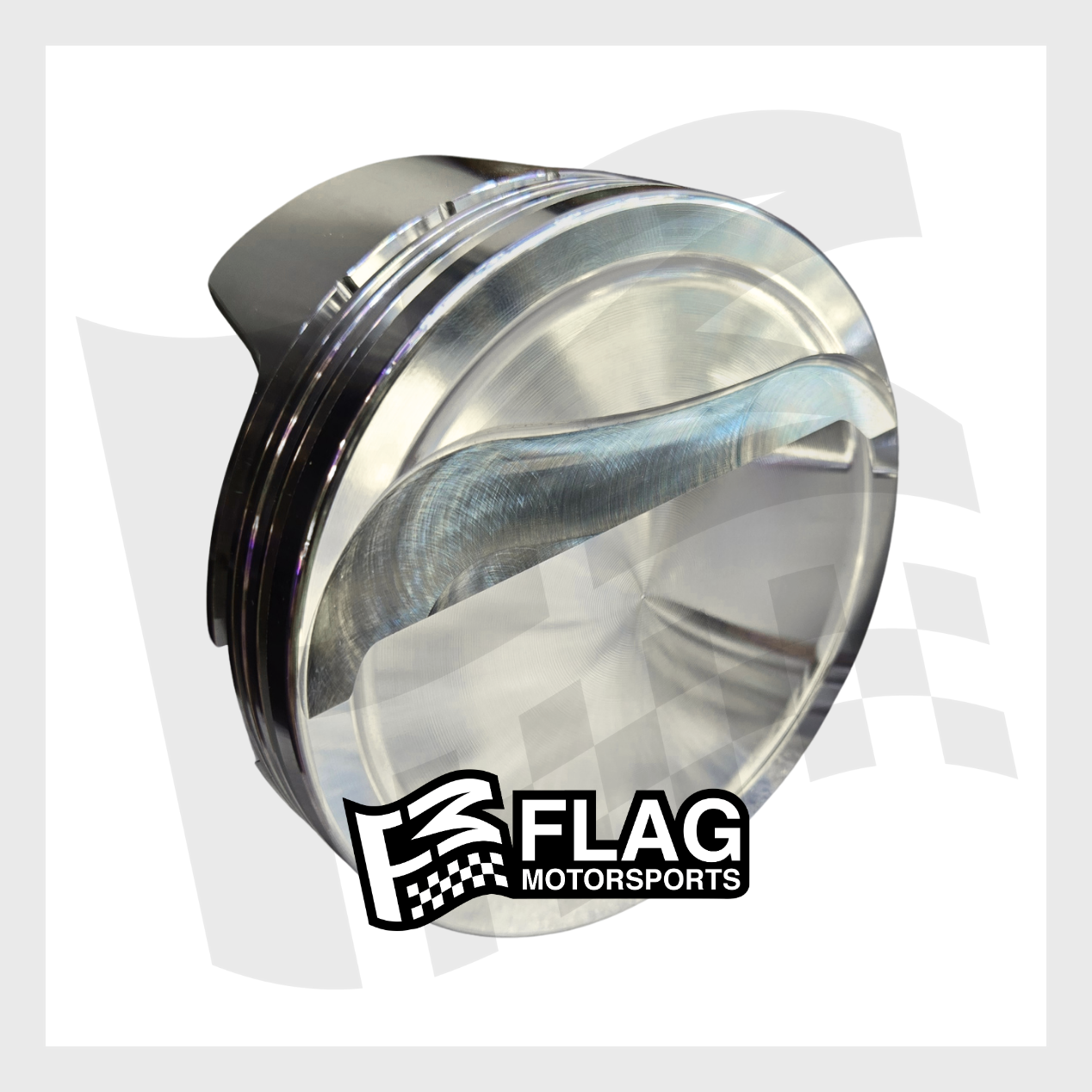

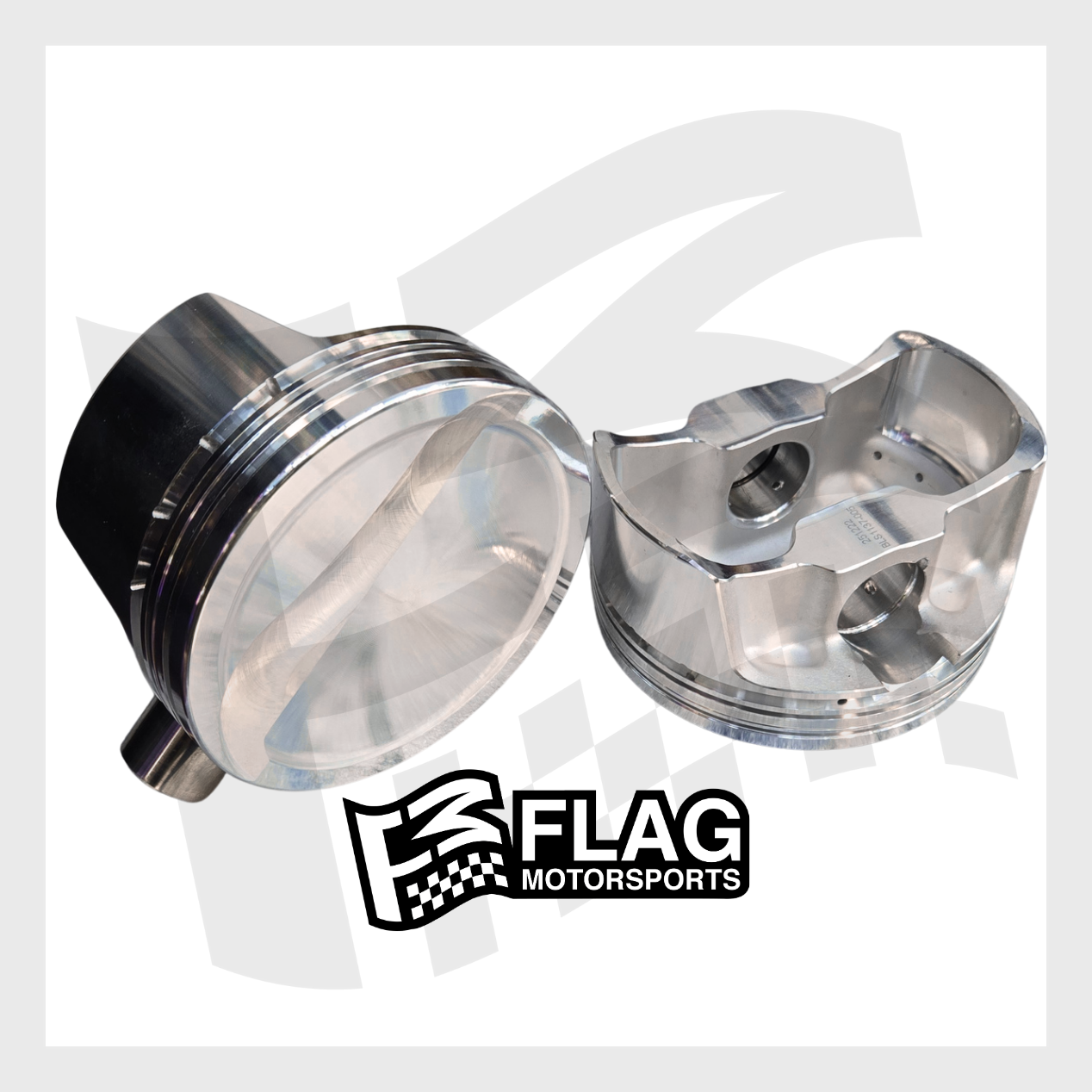

BLS1146-005 LS1/LS2/LS3 CP Pistons

$1,016.40

Chevy LS -20cc Dish All 15°/L92 4.005 bore 1.110 CH 4.000 stroke 6.125 rod 9:2 CR with 68cc head

  • Bore: 4.005"
  • Stroke: 4.000"
  • Rod Length: 6.125"
  • Compression Height: 1.110"
  • Dome Height: -0.138"
  • Dome/Dish Volume: -20.0cc
  • Reference Chamber: 68.0cc
  • Catalog Compression Ratio: 9.20:1
  • Piston Weight: 415g
  • Resulting Displacement: 403 cid

Chevy LS -20cc Dish All 15°/L92 4.005 bore 1.110 CH 4.000 stroke 6.125 rod 9:2 CR with 68cc head

  • Bore: 4.005"
  • Stroke: 4.000"
  • Rod Length: 6.125"
  • Compression Height: 1.110"
  • Dome Height: -0.138"
  • Dome/Dish Volume: -20.0cc
  • Reference Chamber: 68.0cc
  • Catalog Compression Ratio: 9.20:1
  • Piston Weight: 415g
  • Resulting Displacement: 403 cid
